| Brand Name: | Jingtai |
| Model Number: | JT-2.83IPSSH |
| MOQ: | 5pcs |
| Price: | 1-20 |
| Delivery Time: | 1-5 weeks |
| Payment Terms: | T/T,Western Union,L/C,MoneyGram,D/A,D/P |

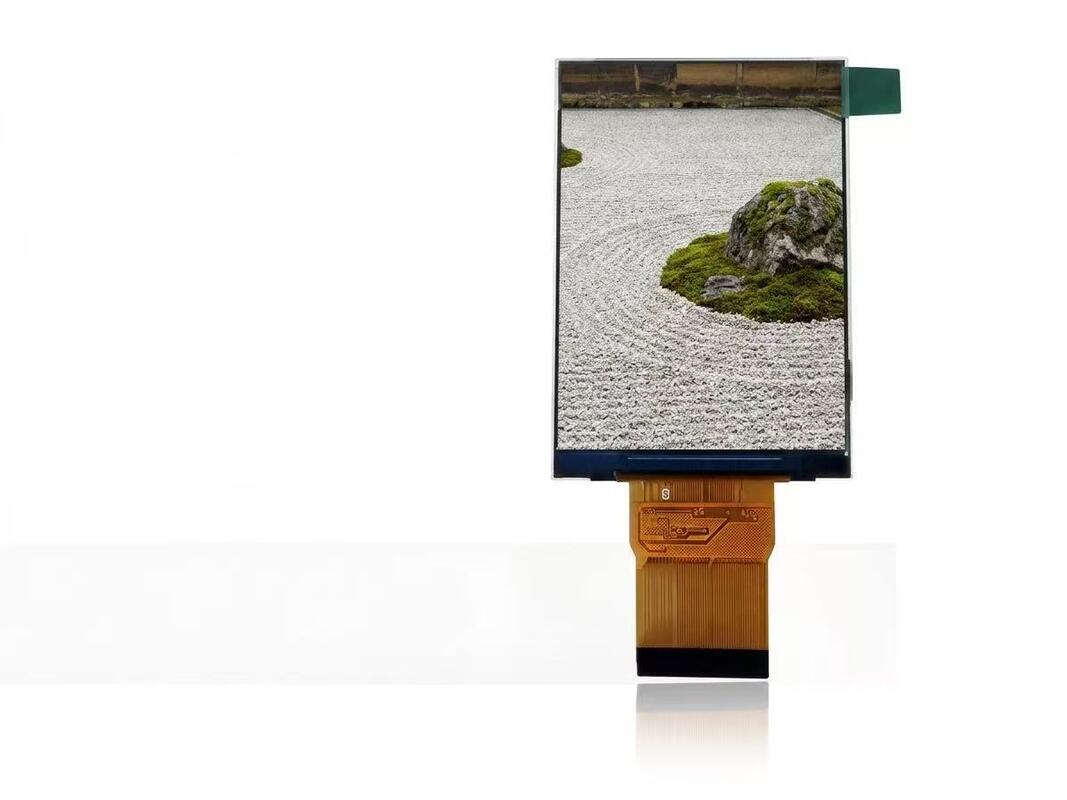

Smart Home 2.83 Inch TFT Display Module 480x640 RGB MIPI Screen
- Where You Can Use This Module
This 2.83 inch tft lcd display module is designed for smart home control products. It is a very good choice for smart wall switch panels, home temperature controllers, security alarms, and small kitchen appliance screens. Because it is simple to use and fits small boxes easily, it helps global buyers upgrade their home equipment without any trouble.
- Module Size and Thin Outline
The resolution of this display module is 480*640 pixels with a 4:3 aspect ratio. The active glass area that shows pictures is 43.2*57.6mm, and the total module outline size is 45.9*65.2mm. It features a super thin body with a thickness of only 1.56mm. This small and compact design makes it very easy to install into narrow plastic devices.
- Clear IPS Panel and Wide Viewing Angle
This product uses a premium display panel with advanced IPS technology. It gives a full wide viewing angle of 80 degrees from the top, bottom, left, and right sides. This means users can see the control icons and words very clearly from any direction in the room, and the screen color will not change or blur.
- High Brightness and Touch Interface
This is a bright display with a 700 cd/m2 luminance, making it very easy to read even under bright indoor room lights. It has a sensitive capacitive touch screen (CTP) with an I2C connection for smooth finger touch. It supports SPI, RGB, and MIPI interfaces to fit different mainboards and work stably for a long time.
Product Specifications
|
Number Of Pixels |
480*640pixels |
|
Active Area |
43.2*57.6mm |
|
Module Outline |
45.9*65.2*1.56mm |
|
Aspect Ratio |
4:3 |
|
Display Model |
Normally Black |
|
Viewing Angle(CR>10) |
80/80/80/80 |
|
Contrast Ratio |
700(Min) 1000(Typ) |
|
NTSC |
71%Typ |
|
LCM Brightness |
250 cd/m²(Typ) 500 cd/m²(Typ) 700 cd/m²(Typ) |
|
Interface |
SPI+RGB/MIPI |
|
Operating Temperature |
-20~+70℃ |
|
Storage Temperature |
-30~+80℃ |
2.83 Inch TFT LCD Module Drawing
