| Brand Name: | Jingtai |
| Model Number: | JT-4.3IPSSH |
| MOQ: | 5pcs |
| Price: | 1-20 |
| Delivery Time: | 1-5 weeks |
| Payment Terms: | T/T,Western Union,L/C,MoneyGram,D/A,D/P |

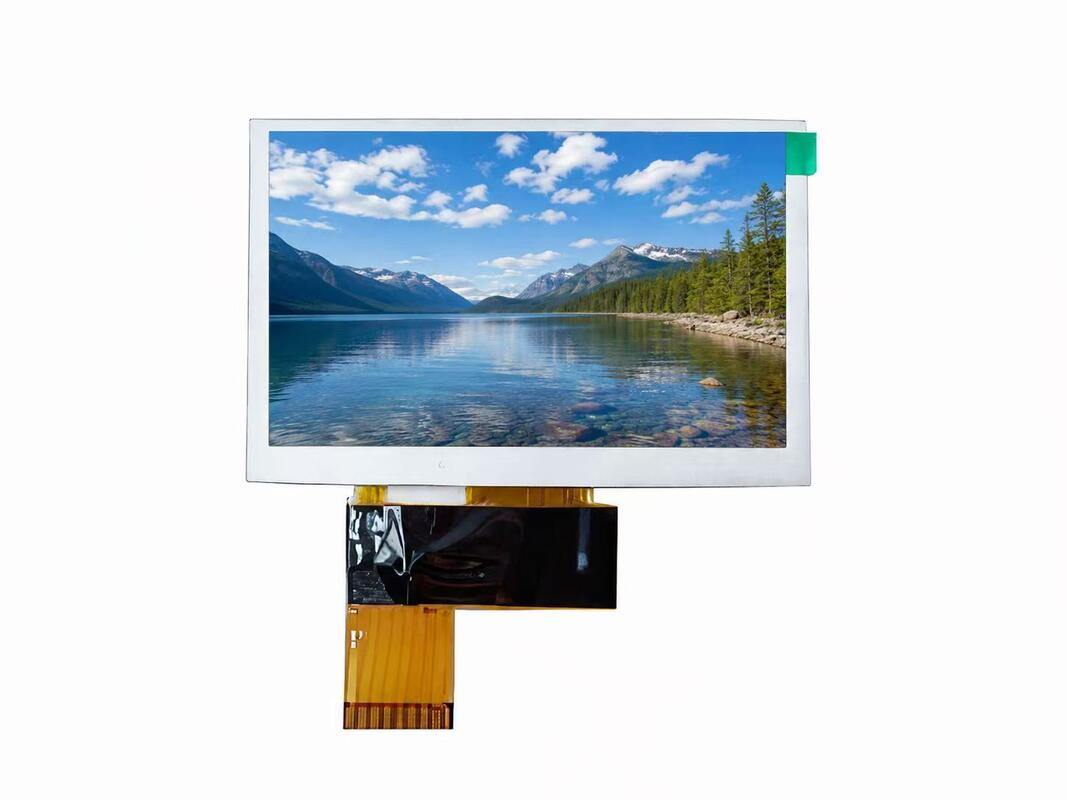

Smart Home 4.3 Inch TFT Display Module 800×480 RGB LCD Screen
Overview
The Smart Home 4.3 Inch TFT Display Module 800×480 RGB LCD Screen is designed for smart home devices, industrial control systems, HMI equipment, and embedded display applications. Featuring an 800×480 high-resolution TFT panel, this module delivers clear image quality, stable performance, and wide viewing angles for modern smart display solutions.
With RGB/LVDS interface support, the display module offers excellent compatibility for various embedded systems and controller boards. The Normally Black display mode enhances color contrast and visual performance, making it suitable for smart control panels, home automation terminals, and intelligent appliance interfaces.
Built with reliable industrial-grade materials, the module supports wide operating temperatures and stable long-term performance in demanding environments.
Features
Applications
Product Specifications
|
Number Of Pixels |
800*480pixels |
|
Active Area |
53.86*95.04mm |
|
Module Outline |
67.2*105.50*2.85mm |
|
Aspect Ratio |
18:9 |
|
Display Model |
Normally Black |
|
Viewing Angle(CR>10) |
80/80/80/80 |
|
Contrast Ratio |
1200(Typ) |
|
NTSC |
50%Typ |
|
LCM Brightness |
250 cd/m²(Typ) 500 cd/m²(Typ) |
|
Interface |
RGB/LVDS |
|
Operating Temperature |
-20~+70℃ |
|
Storage Temperature |
-30~+80℃ |
