| Brand Name: | Jingtai |
| Model Number: | JT-10.1IPSHD |
| MOQ: | 5pcs |
| Price: | The most competitive price and the price is negotiable based on order quantity |
| Delivery Time: | 1-5 weeks |
| Payment Terms: | T/T,L/C,Western Union,MoneyGram,D/A,D/P |
High-quality 10.1-inch HD IPS LCD display designed for industrial control applications, featuring excellent viewing angles and high contrast ratio.
| Feature | Specification |
|---|---|
| Application | Industrial Control |
| Number of pixels | 800*1280 pixels |
| Active Area | 216.58*135.36mm |
| Module Outline | 228.66*143.06*2.7mm |
| Aspect Ratio | 16:10 |
| Display Mode | Normally Black |
| Viewing Angle (CR>10) | 80/80/80/80 (Typ) |
| Contrast Ratio | 800MIN, 1000 (Typ) |
| NTSC | 56% (Typ) |
| LCM Brightness | 300cd/m² (Typ) 600cd/m² (Typ) |
| Interface | MIPI |
| Operating Temperature | -20~+70℃ |
| Storage Temperature | -30~+80℃ |

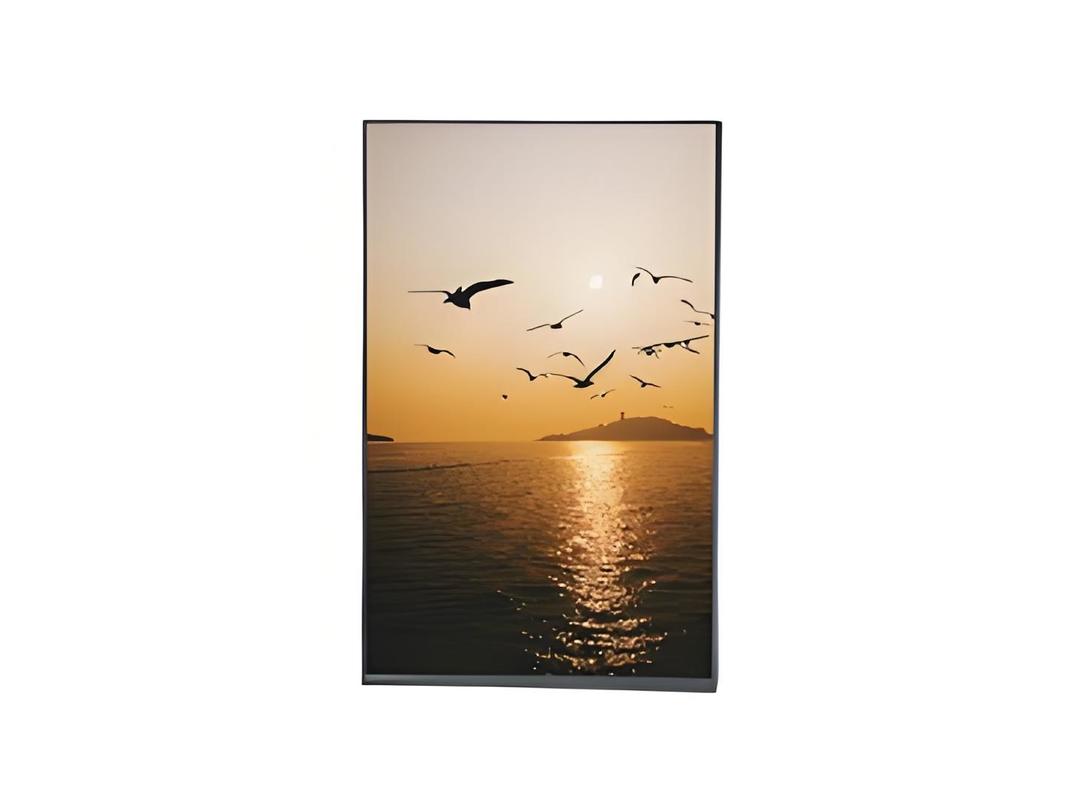

Portrait 10.1-Inch HD TFT LCD Display | 800×1280 Resolution | Capacitive Touch Panel
Model: JT-10.1IPSHD
Product Overview
The JT-10.1IPSHD is a 10.1-inch industrial-grade TFT LCD display featuring IPS technology for full viewing angles and a high resolution of 800×1280 pixels. This module supports a MIPI interface and operates at a supply voltage (Vdd) of 2.3V to 3.6V, with a maximum operating voltage of 3.9V. With a luminance of 300 cd/m² and integrated capacitive touch panel, it is widely used in industrial instruments, medical devices, GPS systems, POS terminals, scanners, home automation, security systems, and various other applications.
Technical Features
Operating Temperature: -20℃ to +70℃
Storage Temperature: -30℃ to +80℃
Outline Dimensions: 228.66 mm (H) × 143.06 mm (V) × 2.7 mm (T)
Viewable Area: 216.58 mm (H) × 135.36 mm (V)
Interface: MIPI
Viewing Direction: IPS all-angle viewing
10.1 HD IPS TFT 800*1280 LCD Display Product Drawing
