High-performance 6.56-inch IPS TFT LCD display featuring incell technology and center blind hole design, ideal for POS/PDA applications requiring excellent visibility and compact form factor.
| Parameter | Specification |
|---|---|
| Application | POS/PDA |
| Resolution | 720 × 1612 pixels |
| Active Area | 67.93 × 152.09 mm |
| Module Dimensions | 70.23 × 157.34 × 1.49 mm |
| Aspect Ratio | 9:4 |
| Display Mode | Normally Black |
| Viewing Angle (CR>10) | 85°/85°/85°/85° (Typical) |
| Contrast Ratio | 1000 (Min), 1500 (Typical) |
| NTSC Color Gamut | 67% (Typical) |
| Brightness | 300 cd/m² (Typical), 450 cd/m² (Max) |
| Interface | MIPI |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
Model JT-6.56BHMIPSINCELL features a 6.56-inch display with a 720×1612 dot matrix and incorporates IPS technology, delivering an optimal viewing experience from virtually any angle. It operates at a low voltage range of 3V to 3.6V, with a typical voltage of 3.3V, and offers a high surface brightness of 450 nits. Users also have the option to integrate CTP onto the display to enhance human-machine interaction.

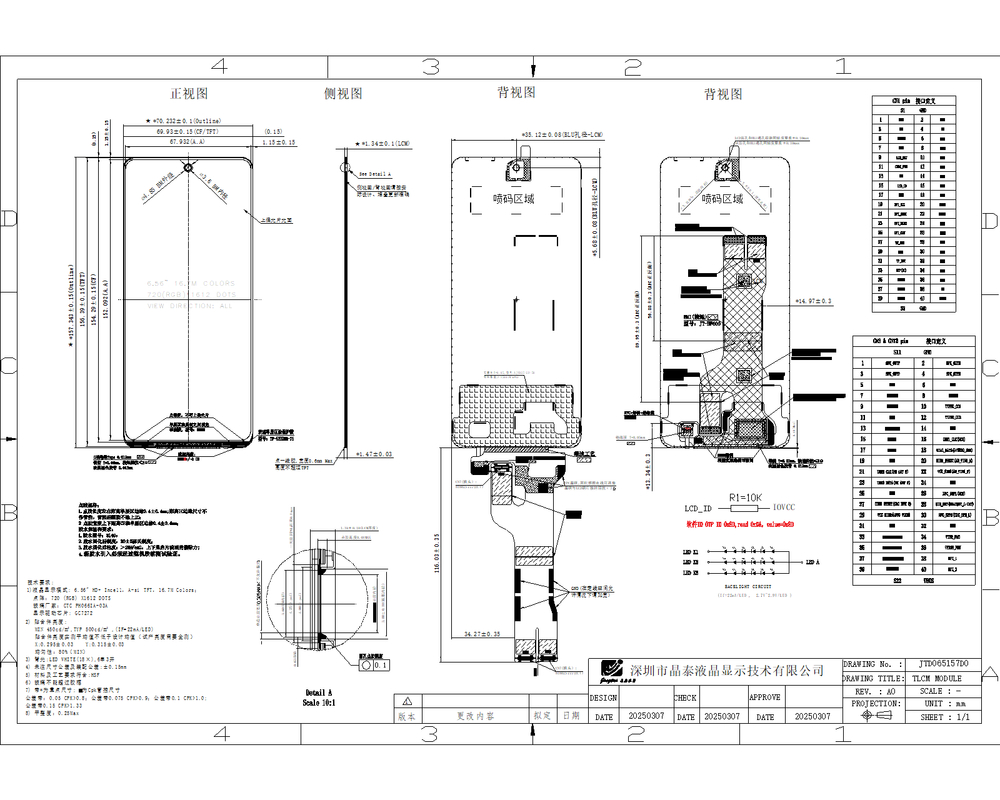

Blind Hole Design 6.56 inch 720*1612 TFT Touch Display Module Drawing
Environmental / Reliability Tests
| No | Test Item | Condition | Remarks |
|
1 |
High Temperature Operation |
Ts= +80℃ , 240hrs |
Note 1 IEC60068-2-2, GB2423. 2-89 |
| 2 | Low Temperature Operation | Ta= -30℃ , 240hrs | Note 2 IEC60068-2-1 GB2423.1-89 |
| 3 | High Temperature Storage | Ta= +80℃ , 240hrs | IEC60068-2-2 GB2423. 2-89 |
| 4 | Low Temperature Storage | Ta= -30℃ , 240hrs | IEC60068-2-1 GB/T2423.1-89 |
| 5 | High Temperature & Humidity Storage | Ta= +60℃ , 90% RH max, 160 hours |
IEC60068-2-3 GB/T2423.3-2006 |
|
6 |
Thermal Shock (Non-operation) |
-30℃ 30 min ~ +80℃ 30 min Change time: 5min, 30 Cycle |
Start with cold temperature, end with high temperature IEC60068-2-14, GB2423.22-87 |
|
7 |
Electro Static Discharge (Operation) |
C=150pF, R=330 Ω , 5 points/panel Air:±8KV, 5 times; Contact: ±4KV, 5 times; (Environment: 15℃ ~ 35℃ , 30% ~ 60%, 86Kpa ~ 106Kpa) |
IEC61000-4-2 GB/T17626.2-1998 |
|
8 |
Vibration (Non-operation) |
Frequency range: 10~55Hz, Stroke: 1.mm Sweep: 10Hz~55Hz~10Hz 2 hours for each direction of X .Y. Z. (package condition) |
IEC60068-2-6 GB/T2423.5-1995 |
| 9 | Shock (Non-operation) |
60G 6ms, ± X, ±Y , ± Z 3 times for each direction |
IEC60068-2-27 GB/T2423.5-1995 |
| 10 | Package Drop Test |
Height: 80 cm, 1 corner, 3 edges, 6 surfaces |
IEC60068-2-32 GB/T2423.8-1995 |
