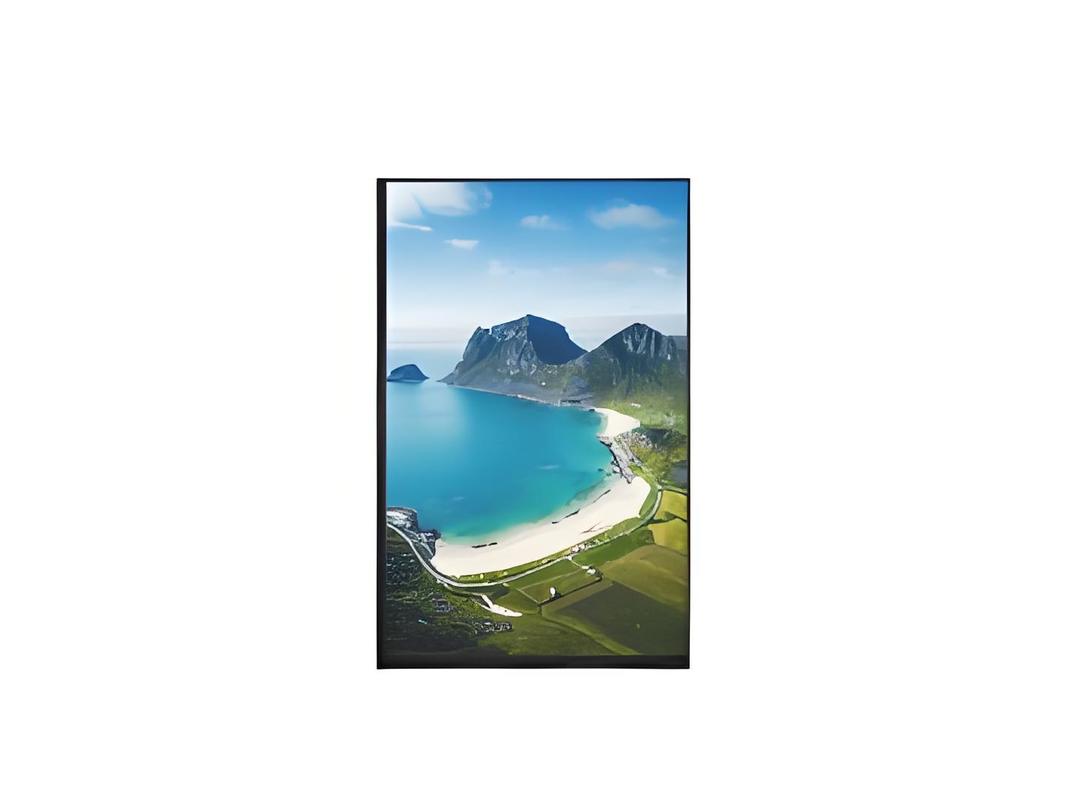

8.0 Inch Tablet TFT LCD Display 330cd/M2 Luminance With Incell Technology

Name: 8.0 Inch Tablet TFT LCD Display 330cd/M2 Luminance With Incell Technology
Brand: Shenzhen Jingtai Liquid Crystal Display Technology Co.,Ltd.
SKU: JT-8.0IPSHDINCELL
Availability: InStock

Brand Name:	Jingtai
Model Number:	JT-8.0IPSHDINCELL
MOQ:	5pcs
Price:	The most competitive price and the price is negotiable based on order quantity
Delivery Time:	1-5 weeks
Payment Terms:	T/T,Western Union,L/C,MoneyGram,D/P,D/A

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen / China

Certification:

ISO9001 / ISO14000

Key Words:

8.0 Inch IPS TFT LCD

Resolution:

800*1280

Display Mode:

IPS Full Viewing Angle

Aspect Ratio:

16:10

Luminance:

330cd/m²(Typ)

Interface Definition:

MIPI

Touch Screen:

CTP

CTP Interface:

12C

Packaging Details:

Standard Exportation Package

Supply Ability:

2000K pcs per month

Highlight:

8.0 Inch Tablet TFT LCD Display

330cd/m2 Luminance LCD Display Module

330cd/M2 Tablet TFT LCD Display

Product Description

8.0 Inch HD INCELL TFT LCD Display Screen with 800*1280 Resolution and 330cd/m² Luminance for Tablet

Product Overview

High-performance 8.0-inch HD TFT LCD display with incell technology, designed for tablets requiring excellent visibility and reliability.

Technical Specifications

Parameter	Specification
Application	Tablet
Number of pixels	800*1280 pixels
Active Area	107.64*172.224mm
Module Outline	114.6184.12.6mm
Aspect Ratio	16:10
Display Mode	Normally Black
Viewing Angle (CR>10)	80/80/80/80 (Typ)
Contrast Ratio	800MIN, 1200 (Typ)
NTSC	59.1% (Typ)
LCM Brightness	330cd/m² (Typ)
Interface	MIPI
Operating Temperature	-20~+70℃
Storage Temperature	-30~+80℃

Key Features

High Resolution: 800×1280 pixel display for sharp image quality
Wide Viewing Angles: 80° viewing angle in all directions
Bright Display: 330cd/m² typical brightness for excellent visibility
Slim Profile: Only 2.6mm module thickness for space-constrained applications
Wide Temperature Range: Operates from -20℃ to +70℃

The JT-8.0IPSHDINCELL is an 8-inch full TFT-LCD display with a high resolution of 800 × 1280 pixels (800 horizontal by 1280 vertical pixel array). This model supports a MIPI interface and operates with a supply voltage (VCC) ranging from 3.0V to 3.6V to drive the LCD panel. It is suitable for Tablet, POS, PDA, smart home system, embedded systems, GPS devices, medical instruments, industrial machinery, and security applications that require high-quality TFT displays with vibrant color reproduction.

The JT-8.0IPSHDINCELL utilizes an IPS-type TFT LCD with full viewing angle. It offers a typical brightness of 330 cd/m² and can operate in temperatures ranging from -20 ℃ to +60 ℃, with a storage temperature range of -20 ℃ to +70 ℃.

Product Images

Frequently Asked Questions

Q1: Can I place a sample order?

JINGTAI: Yes, we welcome sample orders for quality testing and verification. Mixed samples of different product models are acceptable.

Q2: What is the lead time?

JINGTAI: For off-the-shelf products: Samples are available immediately from stock. Sample remaking takes 1-1.5 weeks, and mass production requires 4-6 weeks. For design-in products: We provide a counter drawing proposal within 2-3 days. Sample production takes about 2-3 weeks after drawing approval. Trial-run or mass production begins within 5-6 weeks after sample approval.

Q3: Is there a MOQ for samples and production orders?

JINGTAI: We have low MOQ requirements. Sample orders of 3-5 pieces are acceptable. For mass production, the standard MOQ is 1,000 pieces per lot. We also support quantities below the mass production MOQ for trial-run or pre-production orders.

Q4: How are the goods shipped, and how long is the delivery time?

JINGTAI: We ship via DHL, UPS, FedEx, or TNT, with delivery typically taking 5-7 days. Air freight and sea shipping are also available.

Q5: What is the procedure for ordering an LCD module?

JINGTAI: First, provide us with your requirements or application details. Second, we provide a quotation based on your needs or our recommendations. Third, you confirm the samples and place a deposit for the formal order. Finally, we proceed with production.

Q6: Can I have my logo printed on the LCD product?

JINGTAI: Yes. Please formally notify us during the design stage, and we will produce samples with your logo for testing and approval. Mass production will follow the approved samples.

Q7: Do you provide a product guarantee?

JINGTAI: Yes, we offer a 1-year warranty on our products.

Q8: How do you handle faulty products?

JINGTAI: First, our products are manufactured under a strict quality control system, with a defective rate of less than 0.2%. Second, during the warranty period, we will replace faulty units with new ones for small quantities along with new orders. For defective batch products, we will repair and return them, or discuss solutions--including recall--depending on the actual situation.
