| Brand Name: | Jingtai |
| Model Number: | JT-1.54IPSS |
| MOQ: | 5pcs |
| Price: | The most competitive price and price is negotiable based on order quantity |
| Delivery Time: | 1-5 weeks |
| Payment Terms: | T/T,Western Union,MoneyGram,L/C,D/A,D/P |
| Application | Industrial Control... |
|---|---|
| Number of pixels | 240*240 pixels |
| Active Area | 27.72*27.72mm |
| Module Outline | 31.52*33.72*1.97mm |
| Display Mode | Normally Black |
| Viewing Angle (CR>10) | 80/80/80/80 (Typ) |
| Contrast Ratio | 900 Min, 1200 (Typ) |
| NTSC | 50% (Typ) |
| LCM Brightness | 400cd/m² (Typ) -- Adjustable |
| Interface | MCU/SPI/RGB |
| Operating Temperature | -20~+70℃ |
| Storage Temperature | -30~+80℃ |
Square LCD Display ODM & OEM Services | 1.54-inch 240×240 TFT Display with MCU/SPI/RGB Interface
Square display screen refers to a special LCD product with an aspect ratio of 1:1, which can be customized and cut according to the customer's design. Square screen displays are gradually attracting people's attention, with ultra-thin overall size, high brightness, long display life, and good heat dissipation. Jingtai Liquid Crystal Display can provide different square displays with sizes of 1.54", 2.73", 3.4", and 3.95", which are more commonly used in industrial control, handheld devices, smart home devices, and other special installation environments.
Product Overview

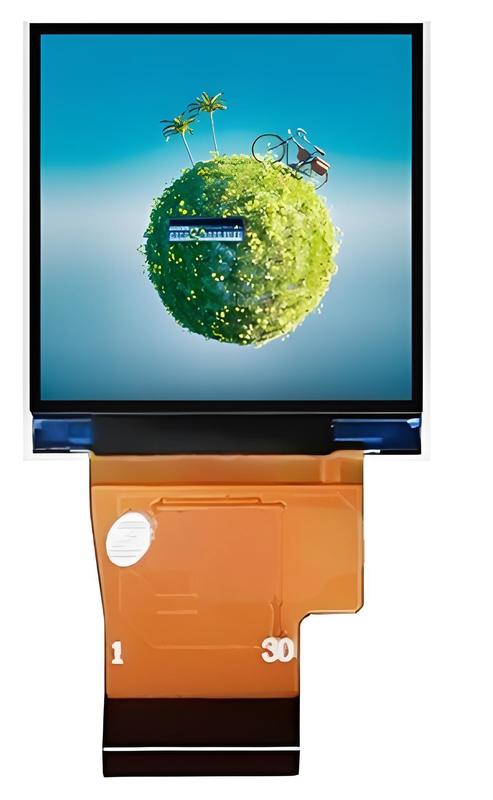

The Jingtai JT-1.54IPSS is a full-color square TFT LCD display with a diagonal size of 1.54-inch with a resolution of 240×240 pixels. Featuring an MCU/SPI/RGB interface and ST7789V driver IC, this module offers a compact outline dimension of 31.52×33.72×1.97mm and an active area of 27.72×27.72 mm. It operates within a logic supply voltage range of 2.6V to 3.3V and delivers a luminance of 400 cd/m².
Key Specifications
1. LCD Size: 1.54-inch TFT
2. Resolution: 240×240 pixels
3. Viewing Angle: IPS All-Angle Viewing
4. Outline Dimension: 31.52×33.72×1.97mm
5. Driver IC: ST7789V
6. Interface: MCU/SPI/RGB
7. Operating Temperature: -20°C to +70°C
8. Storage Temperature: -30°C to +80°C
9. Touch Panel: Optional custom or standard capacitive touch screen (CTP)
Performance & Customization
Designed for reliable performance in varied environments, the module supports optional capacitive touch integration. Luminance levels can be customized based on application requirements—please contact our technical team for tailored solutions.
1.54” TFT LCD Display Drawing
FAQ
1. How can I place an order?
Jingtai: Please provide detailed requirements for a prompt quotation. For design-intensive projects, contact us via email or phone to receive a customized LCD solution proposal.
2. What types of displays do you provide?
Jingtai: Our product range includes TFT LCD modules, monochrome LCDs, OLED displays, digital photo frames, and Android tablets. We support indoor/outdoor, industrial/commercial applications, and offer both standard and fully customized solutions.
3. What is the warranty policy?
Jingtai: All products come with a 1-year warranty. Defective units will be replaced or repaired.
4. What are your delivery terms?
Jingtai: We accept EXW, FOB, FCA, and other incoterms to accommodate your logistical and cost preferences.
